Do you know the composition and classification of titanium pipe?

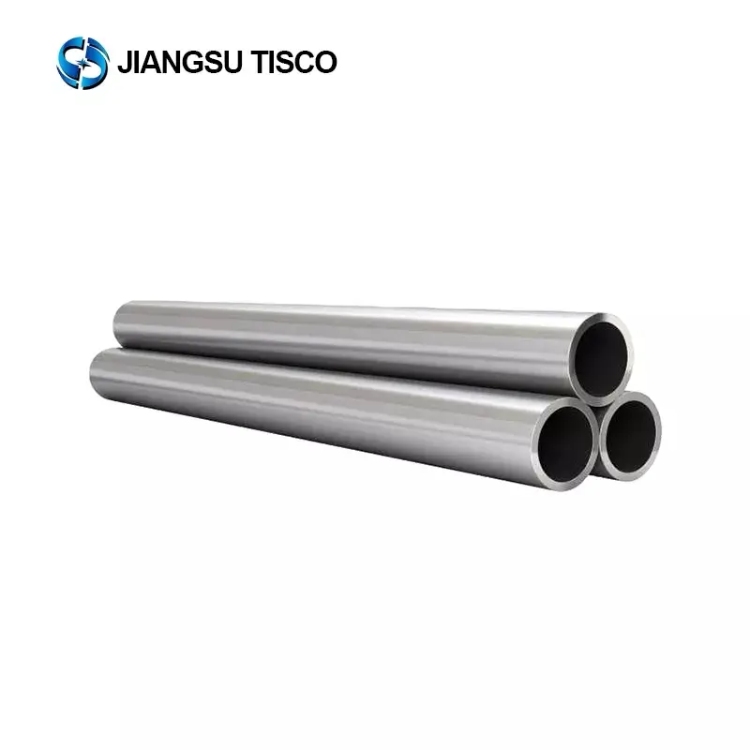

Titanium pipe



The titanium pipe is light in weight, high in strength, and superior in mechanical properties. It is widely used in heat exchange equipment, such as shell and tube heat exchangers, coil heat exchangers, serpentine heat exchangers, condensers, evaporators and conveying pipes, etc. Many nuclear power industries use titanium pipes as standard pipes for their units.



Length Of Pipe(mm)
Titanium Seamless Tube  Outer Diameter ≤15 Indefinite Length 500~400
15 500~900
Titanium Welded Pipe Wall Thickness 0.5~1.25 500~1500
1.25~2.0 500~6000
Titanium Welded-Rolled Tube  Wall Thickness  2.0~2.5 500~4000
0.5~0.8 500~8000
>0.8~2.0 500~5000



Titanium pipe



Classification of titanium alloys



Titanium is an allotrope with a melting point of 1720 °C. When it is lower than 882 °C, it has a close-packed hexagonal lattice structure, which is called α titanium; when it is above 882 °C, it has a body-centered cubic lattice structure, which is called β titanium—using the different characteristics of the above two systems of titanium, adding appropriate alloying elements to gradually change the phase transition temperature and phase content to obtain titanium alloys with different structures. At room temperature, titanium alloys have three matrix structures, and titanium alloys are divided into the following three categories: α alloys, (α+β) alloys and β alloys. China is represented by TA, TC, and TB, respectively.



Alpha titanium alloy



It is a single-phase alloy composed of α-phase solid solution. Whether it is at ordinary temperature or at higher practical application temperature, it is α-phase, with stable structure, higher wear resistance than pure titanium, and strong oxidation resistance. At the temperature of 500 ℃ ~ 600 ℃, it still maintains its strength and creep resistance, but it cannot be strengthened by heat treatment, and the room temperature strength is not high.



Beta titanium alloy



It is a single-phase alloy composed of β-phase solid solution. It has high strength without heat treatment. After quenching and aging, the alloy is further strengthened, and the room temperature strength can reach 1372 ~ 1666MPa; but the thermal stability is poor, and it is not suitable for use at high temperatures.



α+β titanium alloy



It is a dual-phase alloy with good comprehensive properties, good microstructure stability, good toughness, plasticity and high temperature deformation properties, and can be well processed by hot pressing, and can be quenched and aged to strengthen the alloy. The strength after heat treatment is about 50% to 100% higher than that in the annealed state; the high temperature strength is high, and it can work for a long time at a temperature of 400 ° C to 500 ° C, and its thermal stability is inferior to that of α titanium alloy.

Among the three titanium alloys, α titanium alloy and α+β titanium alloy are the most commonly used; α titanium alloy has the best machinability, followed by α+β titanium alloy, and β titanium alloy is the worst. The code name of α titanium alloy is TA, the code name of β titanium alloy is TB, and the code name of α+β titanium alloy is TC. Titanium alloys can be divided into heat-resistant alloys, high-strength alloys, corrosion-resistant alloys (titanium-molybdenum, titanium-palladium alloys, etc.), low-temperature alloys and special functional alloys (titanium-iron hydrogen storage materials and titanium-nickel memory alloys), etc. . Titanium alloys can obtain different phase compositions and structures by adjusting the heat treatment process. It is generally believed that the fine equiaxed structure has good plasticity, thermal stability and fatigue strength; the needle-like structure has high lasting strength, creep strength and fracture toughness; the equiaxed and acicular mixed structure has good comprehensive properties.



Permissible Deviation Of Outer Diameter Of Titanium Pipe(mm)
Outer Diameter 3~10 >10~30 >30~50 >50~80 >80~100 >100
Allowable Deviation ±0.15 ±0.30 ±0.50 ±0.65 ±0.75 ±0.85



Titanium pipe



Excellent titanium pipe supplier



From the above information, we can understand the basic performance and composition classification of titanium pipe, and how to buy high-quality titanium pipe, welcome to pay attention to an excellent titanium pipe supplier JIANGSU TISCO INDUSTRIAL CO.,LTD, this is a company specializing in the production of various types of steel, with ten With four years of export experience, it is a trustworthy company. You are welcome to inquire and buy.
